FIG	Spruce PN	Cleveland PN	Descripiton
--	074-01000	074-01000	Back Plate Assembly

Overview

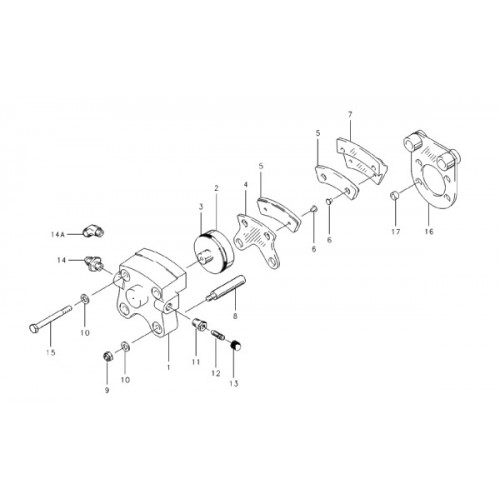

Model No.30-63A used with wheel 40-97A. P/N 30-63A

Reference Chart

				Assembly No. & qty. per assembly
FIG	Part No.	Cleveland No.	Description	30-56	30-56A	30-63	30-63A	30-63D
	091-02200	091-02200	Cylinder Assy.	--	--	1	1	1
1	061-01900	061-01900	Cylinder	1	1	1	1	1
2	062-01600	062-01600	Piston	1	1	1	1	1
3	101-05200	101-05200	"O" Ring	1	1	1	1	1
	073-01100	073-01100	Press. Plate Assy.	1	1	1	1	1
4	063-01200	063-01200	Plate-Press.	1	1	1	1	1
5	66-105	66-155	Lining	1	1	1	1	1
6	105-00200	105-00200	Rivet - Cleveland 9/32" Long	2	2	2	2	2
	074-01000	074-01000	Back Plate Assy.	1	1	1	1	1
7	064-01500	064-01500	Plate-Back	1	1	1	1	1
8	069-00400	069-00400	Bolt-Anchor	2	2	2	2

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating     Bad           Good

Captcha

Enter the code in the box below

Continue

Cleveland Backplate 074-01000

• Brand: Cleveland
• Product Code: 074-01000
• Availability: In Stock

• $366.00
