| OEM P/N | Inlet | Outlet | Part No. |
|---|---|---|---|
| 068-001 | Top | 1/8" NPT | 06-01260 |

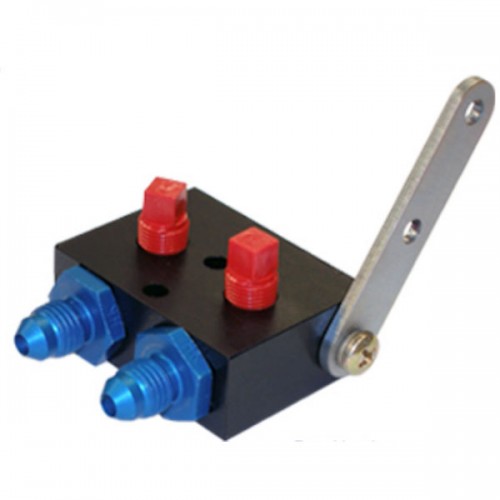

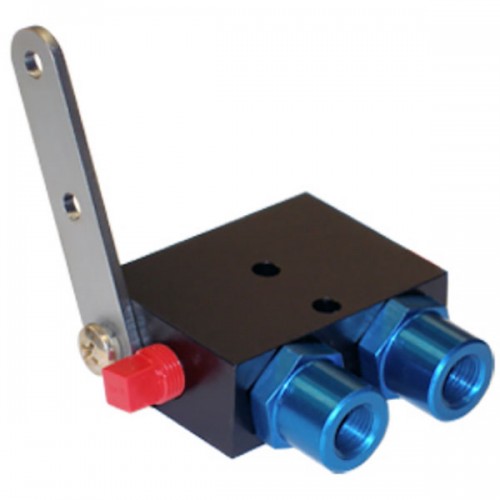

Overview
Innovative design allows control lever to be attached in any of four positions as well as on either side of valve body. |
Features
- Internal poppet valves insure easy, secure operation.
- Body is drilled for mounting with two 3/16" bolts.
- Control arm has 45° of travel.
- For use with MIL-H-5606 Hydraulic Fluid.
Specifications
- Valve body dimensions: 1.5" x 2.0" x 0.75"
- Max operating pressure: 1,200 psi.
- Weight: 0.32 lbs.
- Side or top inlet ports: 1/8" NPT
- Outlet ports: 1/8" Female NPT or -4 Flare.
