MATCO mfg's MCMC-7 master cylinder uses a INTERNAL reservoir. The MCMC-7 can

be used in individual or dual brake applications. Buna-n orings are used in this assembly.

Mil-H-5606 aircraft hydraulic fluid or compatible fluids are reccomended. DOT5 may be

used but not DOT5.1 which contains glycol. DOT3 and DOT4 may not be used and will

cause immediate damage to the seals.

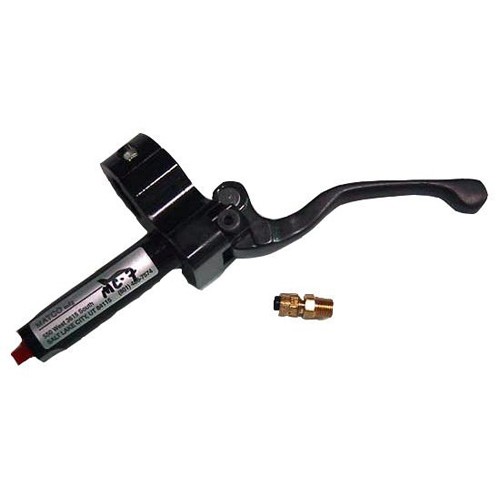

The MC-7 hand operated master cylinder is designed to be stick mounted. This product features a small internal vented reservoir that allows the hydraulic system to self-adjust. The MC-7 must be mounted vertically. This unit replaces the MC-6 which did not self adjust and required dismounting from the control stick for bleeding. The MC-7 is designed to be serviced and bled in the installed position. It is black anodized and uses 1/8 inch NPT fittings. Like all MATCO mfg master cylinders, this system uses Mil-H-5606 hydraulic fluid

Specifications

•

• Measures 9.2 inches from end to end.
• Measures 9.2 inches from mounting hole to mounting hole.
• A 0.688 inch diameter piston is used.
• Stroke is approximately 0.7 inches.
• Displacement is 0.25 cubic inches.
• The ports on all MATCO mfg master cylinders are 1/8 inch NPT (except the MC-4E).
