The smallest, lightest, and lowest power consumption Altitude Digitizer on the market.

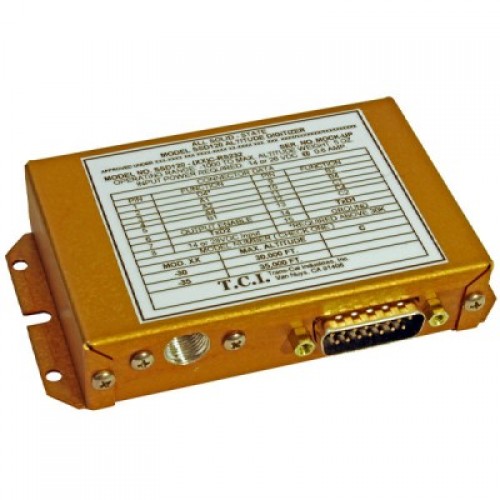

The SSD120-35C-RS232 is a solid-state Altitude Encoder that is designed
to provide a rugged and reliable altitude digitizer for applications
where size, weight and economy are critical. Incorporating one ICAO gray
code port, as well as two RS232 serial altitude data outputs, this
encoder is a simple and robust addition to any avionics installation
requiring accurate pressure altitude information for multiple aircraft
systems.
The two asynchronous RS232 outputs provide altitude data on the serial
data protocol which is commonly used to provide pressure altitude data
to ADS-B, GPS, Auto-Pilots, Transponders and other navigation devices.
Six (6) serial data protocols are available. The data protocol is
selected through internal shunts or via software set-up. Resolution of
the serial altitude data may be set to 100 feet or 10 feet through
internal shunts.
Operating Pressure Altitude Range: -1000 to +35,000 feet
Features
- Featuring the best warranty in the business: 42-month manufacturer direct replacement. If your Trans-Cal encoder experiences a warranty-covered failure, it'll be replaced with a brand new unit with a new 42-month warranty.
- Average MTBF: 8 years.
Specifications
- 1/8-27NPT Static Port Inlet
- One ICAO pressure altitude gray code output
- Two RS232 serial altitude data outputs
- Operating Pressure Altitude Range: -1000 to +35,000 feet
- Comes standard with 10 foot serial resolution
- Operating Temperature Range: -20ºC to +70ºC
- Operating Voltage: +10 to +33Vdc
- Operating Current: +12Vdc @220mA / +28Vdc @270mA
- FAA TSO-C88a and ETSO-C88a Approved
- Tested and conforming to MIL-STD-704E and RTCA DO-160E
- Power and data I/O lines provide on industry standard D-Subminiature Connector
- Weight: 4.3 oz.
TRANS-CAL ALTITUDE ENCODER MODEL SSD120-35C-RS232 FAA TSO-C88
- Product Code: SSD120-35C-RS232
- Availability: In Stock
-
$285.00
