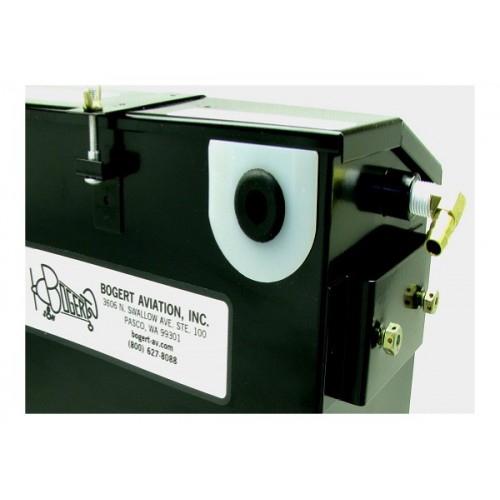

  • Bogert Aviation Battery Box Modification STC Kit

Overview


The STC Battery Box Mod greatly improves battery performance. It modifies Piper

Metal Battery Boxes to eliminate the braided straps and ground connections known

for heat generating, high resistance connection.

Hard starting and other electrical problems can often be tracked back to poor battery and group connections. Use this inexpensive mod with a new positive and negative cable if your battery box is still mechanically sound.

The Battery Box Mod comes with templates to make the cut outs so it’s very easy to do. The modification also includes the u-shaped flanges a cover plate to seal the old insulator hole and rivets. The flanges accommodate Bogert’s “Low Loss” Copper cables and the entire flange slides in and out of the slots making access to the battery quick and easy. Paperwork includes the FAA/PMA approved STC SA4008NM, AML, Instructions and a sample 337 form entry.



Features


  • Less expensive to modify the existing box than to replace it
  • Mod and Positive and Negative Cables are less costly than new braided straps
  • Compatible with our famous “Low Loss” Cable Kits
  • Nylon inserts guard against battery grounding or unwanted mishaps
  • Add positive and negative copper cables for additional charge


Application

Aircraft Make

Aircraft Model

Type Certificate Number

Certification Basis for Alteration

*FAA Drawing List

Number-Date

AML Revision Date

PIPER

PA-18, PA-18S, PA-18-”105”, PA-18S-”105”, PA-18A, PA-18-”125”, PA-18- “135”, PA-18A “135”, PA-18S “135”, PA-18 “150”, PA-18A “150”, PA-18S “150”, PA-18AS “150”

1A2

CAR 3 and TCDS 1A2

1-1

10/14/03

4/12/04

PIPER

PA-20 “115”, PA-20S “115”, PA-20 “135”, PA-20S- “135”

1A4

CAR 3 and TCDS 1A4

1-1

10/14/03

4/12/04

PIPER

PA-22-135, PA-22-108, PA-22S-135, PA-22-150, PA-22-160, PA-22S-160

1A6

CAR 3 and TCDS 1A6

1-1

10/14/03

4/12/04

PIPER

PA-23, PA-23-160, PA-23-235, PA-23-250

1A10

CAR 3 and TCDS 1A10

1-1

10/14/03

4/12/04

PIPER

PA-24, PA-24-250, PA-24-260, PA-24-260

1A15

CAR3 and TCDS 1A15

1-1

10/14/03

4/12/04

PIPER

PA-25, PA-25-235, PA-25-260

2A10

CAR 3 and TCDS 2A10

1-1

10/14/03

4/12/04

PIPER

PA-28-140, PA-28-150, PA-28-160, PA-28-161, PA-28-180, PA-28-235, PA-28R-180, PA-28R-200, PA-28RT-201

2A13

FAR 23 and TCDS A1EA

1-1

10/14/03

4/12/04

PIPER

PA-30, PA-39

A1EA

FAR 23 and TCDS A1EA

1-1

10/14/03

4/12/04

PIPER

PA-32-301, PA-32-260, PA-32-300, PA-32R-300

2A13

FAR 23 and TCDS 2A13

1-1

10/14/03

4/12/04



Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Bogert Aviation Battery Box Modification STC Kit

  • Product Code: 08M-BBM
  • Availability: In Stock

  • $107.00


0 reviews / Write a review
