Overview

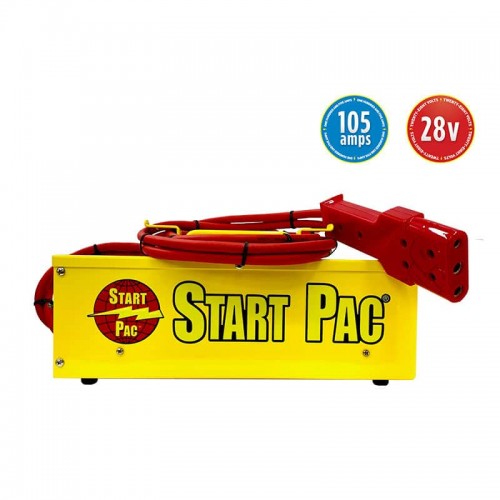

Start Pac® Model 53105 is a 28.5 Volt continuous DC power supply when plugged into

220Volt single-phase AC power. This unit will deliver full 105 amp DC output, but will not

provide enough current for engine starting. Therefore this unit is designed for maintenance

and to power up various functions such as inverters, avionics, GPS, etc. Made in the USA.

Specifications

Maximum Continuous Current output	105 A
DC voltage output	28.5 VDC
AC voltage input	220 VAC
AC current input at maximum DC power output	14 A @220VAC
Phase	Single
Forced air-cooling	Yes
Over current protection	Yes
Over voltage protection	Yes
Over temperature protection	Yes
Complete weight with aircraft cables	12lbs / 5.4kg
Dimensions Length x Width x Height	16" x 4-3/8" x 5-1/4" (40 x 11.5 x 13.3 cm)
