Overview

This unit is a full 28VDC battery pack and will provide superior startson all

electrically-started turbine engines. It has dual, redundant chargers with a total

of 7 amps output and a recharge time of approximately 4 hours.

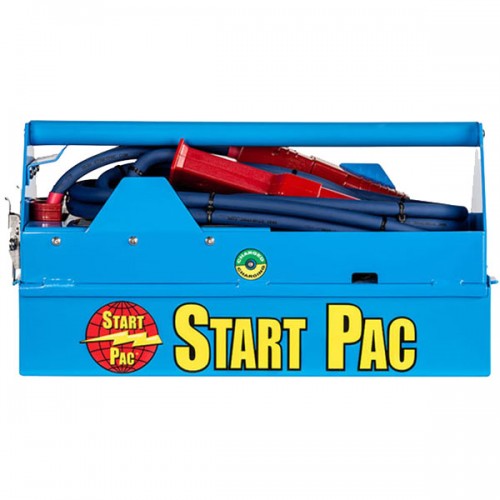

The Start Pac® Model Li2800 QC utilizes the latest technology in Lithium batteries. These batteries provide the same power as the lead-acid type but are 42% lighter and 32% smaller.

These superior batteries provide the same power as the lead acid type, but have twice the cycle life and no sulfation issues.

Note: This unit is designed for engine starting only.

Note: Lithium ion batteries can be damaged by deep discharges. Do not run the batteries down below 23 volts, a spike during a start is okay. Voltages below 23 begin the damage to the batteries. At 18 volts, the batteries will be damaged beyond repair..

Features

Twice the battery life of lead-acid batteries
No sulfation problems (can be left in a completely discharged state without causing damage)
Batteries have no memory effect and can be recharged at anytime.
Made in the USA.

Specifications

28 AMP hours @ 10 Hour Rate
2400 AMPS Peak Current
L 19.2" x W 7.5" x H 9.75" / L 48.768cm x W 19.05cm x H 24.765cm
46 lbs./20.8 kg Complete weight with built in charger and aircraft cable
Not to be used as an aircraft battery charger.
Do not charge in flight.
Replacement Battery
- Quick Change replacement battery box for Li2800QC START PAC or Li2800QC Twin Pack 28V
- 8VDC safe Lithium-Ion
- 31 Ah capacity
- 2400A peak current
- 31.4lbs / 14.2kg
