Overview

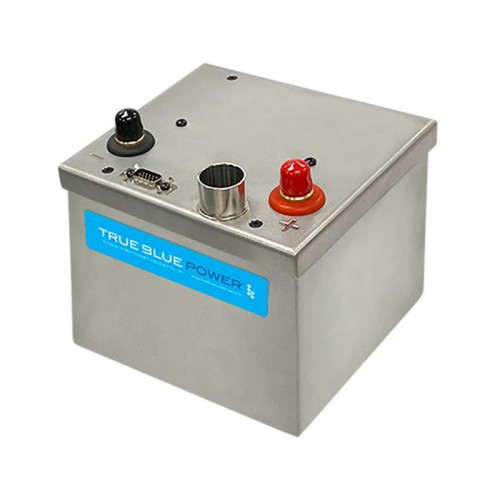

Cut your aircraft battery weight and increase your useful load. The TB14 is designed

for smaller, 28-volt fixed wing aircraft. You’ll gain faster and cooler engine starts

and benefit from superior performance in extreme temperatures (-20°C to +70°C).

The TB14 features built-in charge current limiting to protect your aircraft's

alternator or generator without needing to install additional equipment and

delivers cockpit communication via RS-232 (analog and discrete signals).

This lithium-ion aircraft battery is TSO certified, lasts 8 years and

features on-condition maintenance, saving you time and money.

Specifications

Capacity: 13 amp-hour nominal at 23°C/73.4°F
Charge Voltage: 28.8 VDC nominal
Output Voltage: 26.4 VDC nominal
Output Current: 100 A continuous, 850 A max
Technology: Advanced iron phosphate lithium-ion cell chemistry
Protection: Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting
Energy Density: 76 Wh/kg 121 Wh/liter
Operating Temperature: -20°C to +70°C (-4°F to +158°F)
Weight: 10 lbs. (4.54 kg)
Dimensions: 6.3” L x 5.6” W x 4.9” H
Configuration: 2P8S; 2 parallel cells x 8 series cells
Maintenance: On-condition
Battery Life Expectancy: 8 years (average)
Case: Anodized aluminum, blue
Certification: FAA TSO C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA

Delivers more power per pound than any other aircraft battery
13 amp-hour nominal at 23°C/73.4°F
Weighs 10 lbs. (4.54 kg)
Advanced iron phosphate lithium-ion cell chemistry
Higher voltage during engine start — Less wear, less maintenance and increased useful life
35 minutes (at 28 amps average) for complete recharge when the battery is fully discharged
Superior high-temperature and cold-weather performance from -20°C to +70°C (-4°F to +158°F)
Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
Communicates battery status to the cockpit via RS-232, analog and discrete signals
On-condition
8 years (average) life expectancy
Designed and built in Wichita, Kansas, USA
FAA TSO Certified
Two-year limited warranty
