Overview


Battery Features:

  • Drycell design for mounting in any orientation and fully aerobatic use
  • 2 year storage life to 50% state of charge when stored at 77°F (25°C)
  • 70% of rated starting power delivered at -4°F (-20°C)
FAA-PMA Certified Sealed Aircraft Battery For Piper PA-18 and PA-19 Series
STC MUST BE PURCHASED SEPARATELY WITH STC’D BATTERY BOX KIT.

FAA-PMA Certified Sealed Aircraft Battery For Cessna C-170, C-180, C-195 Aircraft
STC MUST BE PURCHASED SEPARATELY WITH STC’D BATTERY BOX KIT.

337 field approval must be filed for all other aircraft.



Specifications


  • Nominal Capacity @ C1: 12.3 Ah
  • Nominal Capacity @ C/10: 16.0 Ah
  • Altitude Rating: -1,500 to 70,000 ft.
  • 5 second 80°F (27°C) cranking amps to 7.2V: 680 amps
  • CCA @ 0°F (-17.8°C): 220 amps
  • CA @ 32°F (0°C): 300 amps
  • HCA @ 80°F (27°C): 370 amps
  • Reserve Capacity: 25 minutes @25amps
  • Terminals: Brass female for M6 stainless steel bolt
  • Terminal Torque: 50 in-lb
  • Length, in. (mm): 7.15 (181.61)
  • Width, in (mm): 3.01 (76.33)
  • Height, in (mm): 6.61 (167.77)
  • Weight, lb (kg): 15.4 (6.99)
  • Resistance at 1kHz @77°F: 7 mOhm
  • Short circuit current: >1,800 amps

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

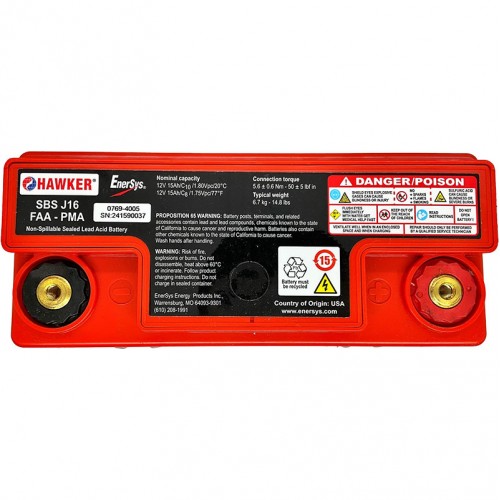

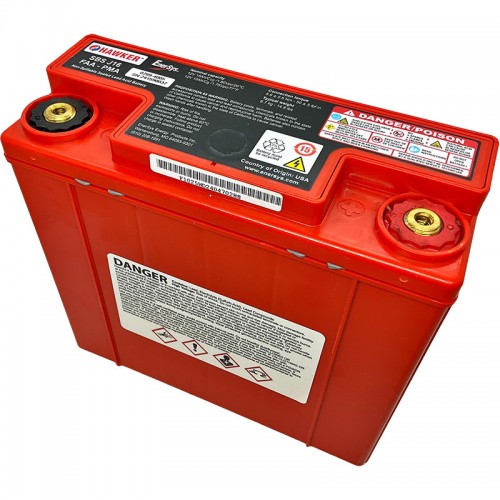

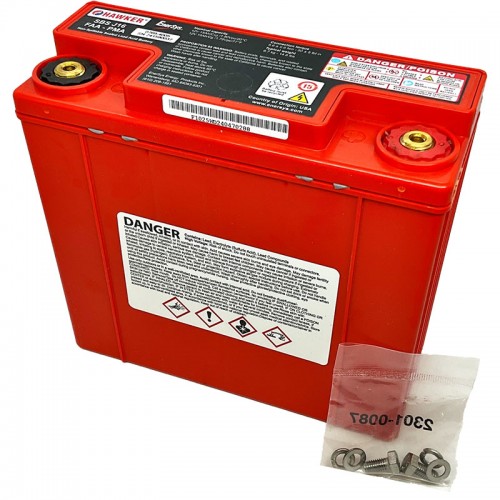

EnerSys Hawker® SBS J-16 Dry Cell Aviation Battery - FAA PMA

  • Brand: Odyssey
  • Product Code: 0769-4005
  • Availability: In Stock

  • $288.00
