Overview


Avionics Battery for lighting, standby, emergency power. Protects and extends the life

of other avionics. Concorde's Emergency Batteries float directly on the DC buss with

no need for a dedicated charger. This results in a high inrush current which extends

battery life with fast recovery time from discharge. With the battery floating directly

on the buss, transient spikes in the DC power are absorbed. These batteries are

self regulating on charge and will take only the current required to maintain it at

full charge.

Recombinant Gas - The RG Series are low resistance, valve regulated lead acid (VRLA) batteries.


Features


  • Maintenance free
  • Constructed with non removable vent valves no addition of electrolyte or water required
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG Series batteries ship Hazmat Exempt
  • Glass Panel Application


Specifications


  • C1 @ 23°C (74°F) = 6.0 Ah
  • C1 @ -18°C (0°F) = 4.0 Ah
  • C1 @ -30°C (-22°F) = 3.0 Ah
  • Primary Aircraft Purpose: Emergency Aircraft Battery
  • Voltage: 24
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 6.00
  • Max Weight: 14.50 lb / 6.6 kg
  • RG-132: Not Rated for Engine Starting

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

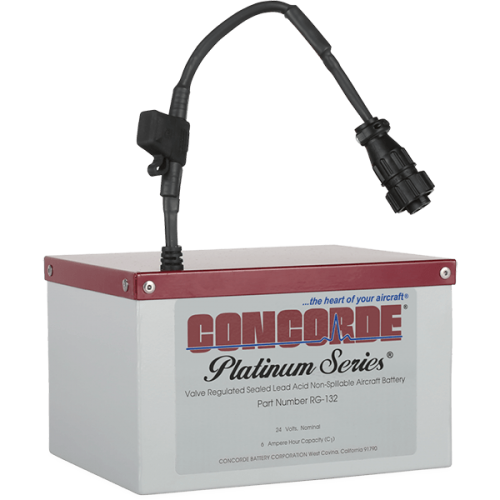

Concorde Sealed Battery RG-132

  • Brand: Concorde
  • Product Code: RG-132
  • Availability: In Stock
  • $3,673.00
