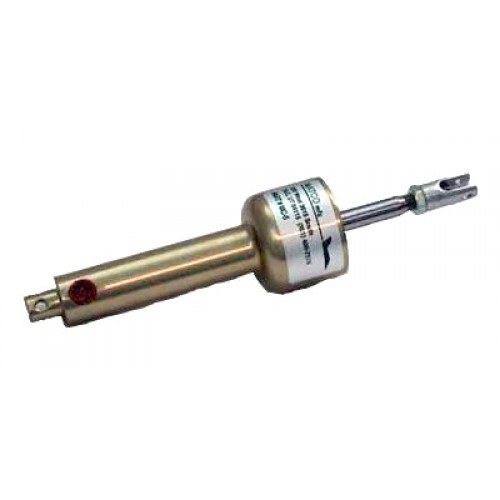

  • Matco Mc-5 Vertical Mount Brake Cylinder
DescriptionPart Number
MCMC-506-11000


Overview


MATCO mfg's MCMC-5 master cylinder uses a INTERNAL reservoir. The MCMC-5 can be used in individual or dual brake applications. Buna-n orings are used in this assembly. Mil-H-5606 aircraft hydraulic fluid or compatible fluids are reccomended. DOT5 may be used but not DOT5.1 which contains glycol. DOT3 and DOT4 may not be used and will cause immediate damage to the seals.
The MC-5 has an adjustable clevis. The MC-5 can not be used in series with a second MC-5 or MC-5A.
Vertical Style - Cylinder for vertical mounting, with steel housing and reservoir.


Specifications


  • Measures 8.25 inches from end to end.
  • Measures 7.7 inches from mounting hole to mounting hole.
  • A 0.625 inch diameter piston is used.
  • Stroke is approximately 1.388 inches.
  • Displacement is 0.43 cubic inches.
  • The ports on all MATCO mfg master cylinders are 1/8 inch NPT (except the MC-4E).

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Matco Mc-5 Vertical Mount Brake Cylinder

  • Brand: Matco
  • Product Code: MCMC-5
  • Availability: In Stock

  • $186.95
