Overview

Features

No Programming Required
The CA-1550 MIL Charger/Analyzer is a portable or benchmounted self-contained unit for charging and discharging capacity testing aircraft or ground support batteries. It is simple to use and does not require programming or use of a computer. Digital read-outs of volts, amperes and time are clearly displayed. The CA-1550 MIL has been designed to accurately charge, test and guarantee the emergency capacity of sealed or vented lead-acid or nickel-cadmium batteries. Guaranteed emergency capacity is especiallyimportant for aircraft batteries.

Wide Variety of Use

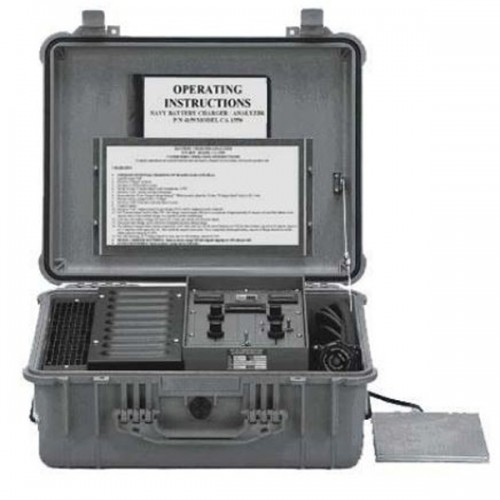

The unit comes in a convenient protective carrying case. The flexibllity of charge and discharge functions of the CA-1550 MIL makes it usable for a wide variety of batteries. The unit accurately charges and tests 12 or 24 volt lead-acid batteries as well as nickel-cadmium batteries from a single cell to 22 cells.

Charge and Discharge
The charge section of the CA-1550 MIL allows charging at both constant potential or constant current togive maximum flexibility in selection of charge method. The charger has an adjustable charge current from 0 to 25 amperes, and an automatic times to read and/or terminate charge and discharge time.

The discharge section of the CA-1550 MIL enables battery capacity testing with a constant current of 0-50 amperes. The unit automatically measures the battery voltage and passes or fails the battery depending on the battery’s ability to maintain the specified minimum voltage for the pre-settable time, (usually one hour). All meters “freeze” their readings at the end of test and the operator thereby knows the precise ampere hour capacity of the battery.

Specifications

•

• The CA-1550-MIL includes an integrated battery temperature monitoring plate. This accessory allows the user to set up a test with limited monitoring. The plate is designed to shut down the charge or discharge portion of the test if the battery exceeds 50°C.

In The Box

•

• Operating Instructions
• Temperature Plate
• Battery Harness, Ring Terminals
• Battery Harness, Alligator Clips
• Batter Harness, Quick Disconnect
• Battery Harness, F-18 Model A & B
• Spare20A Fuse (MDA-20R)
• 40A Fuse (MDL-40)
