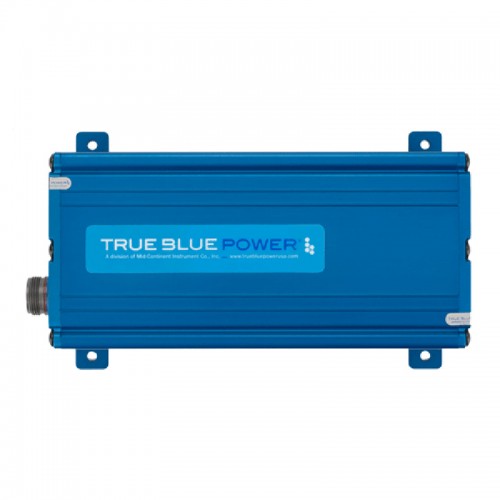

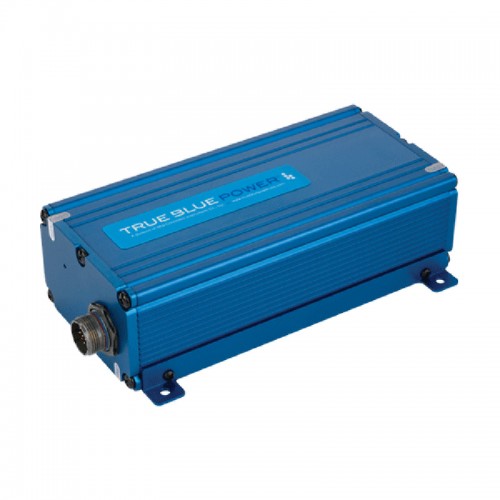

True Blue Power Lithium-Ion Battery 28 Watt TS60 Bayonet

The True Blue Power TS60 series Emergency Battery Power Supply (EBPS) part numbers 6430060-1 are designed to supply DC power for aircraft emergency lighting when aircraft power failure occurs. During normal aircraft operation, the TS60 EBPS will utilize the aircraft’s power to recharge or maintain existing charge at full capacity. The TS60 is a sophisticated power system that utilizes state-of-the-art Nanophosphate® lithium-ion battery cell technology which provides improvements in performance, safety, life and weight when compared to traditional or competing aircraft battery systems.



Features


  • Provides a constant 6.6 VDC power for emergency lighting systems in the event of electrical system failure
  • Utilizes advanced NanoPhosphate® lithium-ion cell chemistry
  • Maintains full charge by recharging during normal flight operations
  • Recharges 4x faster than competing units
  • Two-year maintenance schedule
  • 8 year (average) life expectancy
  • Designed and built in Wichita, Kansas USA
  • Two-year limited warranty


Specifications


  • Capacity: 28 Watt-hour
  • Input Voltage: 17 – 32 VDC
  • Output Power: 6.6 VDC nominal, 4 amps max
  • Weight: 3.8 lbs (1.72 kg)
  • Dimensions:
  • 2.60” H x 8.75” L x 5.35” W
  • (66.04mm x 222.25mm x 135.89mm)
  • Battery Life Expectancy: 8 years (average)
  • Protection: Overcharge, over-discharge, over-current, short circuit, and temperature monitoring
  • Direct Replacement: Honeywell Grimes 60-3844-( )
  • Mating Connector: 9019011-1
  • Case: Anodized aluminum, extrusion, blue
  • Certification:
  • FAA TSO C179b certified Class A-3A
  • RTCA-DO 311A qualified
  • RTCA-DO 160G qualified
